SHAPE3D DESIGN
|
|
|
|
|
|
The Design license has more design functionalities than the Lite version,
including Ghost board, Thickness control, Plugs positioning, File protection,
3D view with Reflexions and Artworks (compare features).
|
|
|
ORDER NOW
|
|
|
|
|
|
Design Features
- Full scale printing
- File protection
- Plugs positioning
|
|
|
|
|
|
- Ghost board (boards comparison of outline, profile, and slices at any position)
- Image superposition
- Volume repartition and cross sections surface in Design mode to compare
with ghost boards

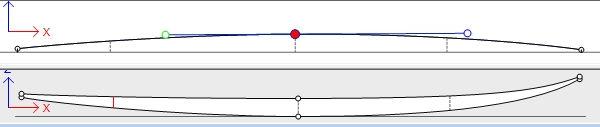

- Thickness control: keep the thickness curve unchanged when the bottom stringer is modified
|
|
|
|
|
|
- Guidelines and measurement bars at any position
- Extend, reverse, level board... positioning
- Design 3D wire view
|
|
|
|
|
|
Full 3D View
- 3D View with Stringer, Plugs, and Artwork Mapping
- Reflexions of the world map of your choice (from a list that includes a shaping room, skies with clouds, gardens with trees...)
|
|
|
|
|
|

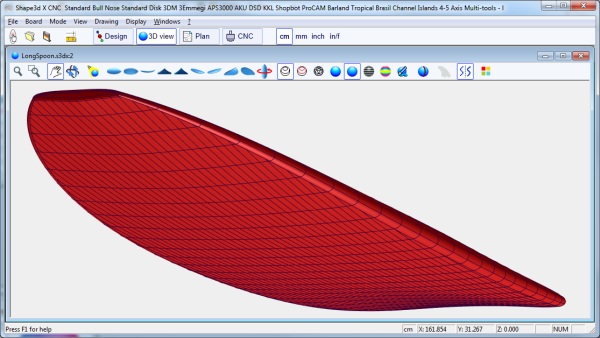

- The boards can be displayed as wires or
solid rendering
|
|
|
|
|
|
Technical requirements
|
|
|
- PC: Windows 11 to 7, Vista, XP, 98.& NT, NT 2000 with DirectX
- Mac: OSX 10.8.0 and later (portage by fr.portmyapps.com)
- Display XGA at least (better results with a 1600x1200 resolution)
|
